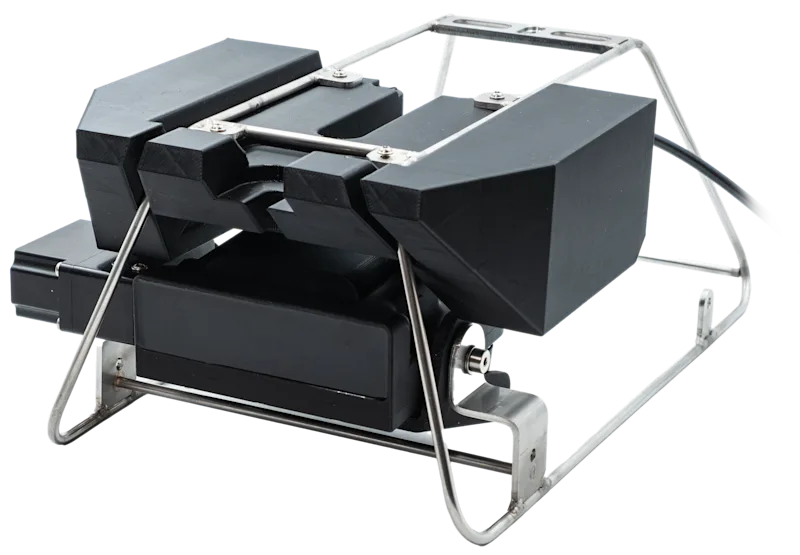

Cerulean Omniscan 450 Compact Sonar

The Omniscan 450 Compact is ideally suited for forward looking ROV applications. The transducer and electronics are housed in a single enclosure with Ethernet + power interface.

Supplier
Cerulean Sonar

"Paint" an image of your surroundings

As the Blueye ROV moves around, the Cerulean SonarView “paints” the image of the scanned area of the sea floor giving excellent situational awareness in the murkiest conditions.

Using Omniscan 450 compact on the Blueye ROV, the scanning is under the direct control of the ROV operator so that you can focus on specific areas of interest rather than waiting for a mechanical scanning sonar to slowly come around to sweep the particular sector you want to see.

Compact Size, Powerful Performance

The OmniScan 450 is built for powerful performance in a compact form. Measuring only 124 x 121 x 56 mm, it fits easily onto inspection-class ROVs while delivering full 360° coverage and real-time imaging. Its rugged design and low power requirements make it ideal for operations in challenging underwater environments.

Technical Specifications

Cerulean Omniscan 450 Compact Sonar

The Omniscan 450 Compact is ideally suited for forward looking ROV applications. The transducer and electronics are housed in a single enclosure with Ethernet + power interface.

Acoustic performance
Maximum Range	100 m
Beam Width	1.1 deg
Beam Height	50 deg
Vertical Beam Angle	15 deg downward
Frequency (nominal)	450 kHz
Range resolution	up to 1/1200th of range
Maximum Ping Rate	20 Hz
Electrical interface
Power	10-30 V, 10 W max (pinging)
Data Interface	100 Base-T Ethernet
Internal Ethernet Switch	Yes
Internal Electronics	Yes
Electrical Connection	Single cable w/4 pin JST for Ethernet data + 1 wire pair for power. Options for the 3 ports including Blue Trail bulkhead connector(s).
Mechanical
Weight in Air	934 g
Weight in Water	400 g
Max Operating Depth	300 m
